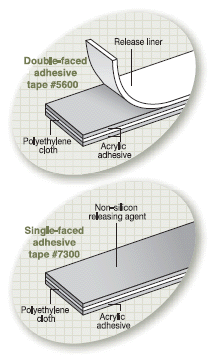

Characteristics
Tape size
Item |
5600 |
7300 |
Thickness(mm) |
0.23 |
0.17 |
Width(mm) |
50 |
75 |
100 |
50 |
75 |
100 |
Length(m) |
20 |
20 |
Unit package(roll) |
20 |
16 |
12 |
36 |
27 |
18 |
General physical properties
Item |
Unit |
Measurement |
Ball tack |
Front |
1/32" |
20 |
Back |
23 |
Adhesion
(stainless steel) |
Front |
N/25mm |
22 |
Back |
25 |
Holding performance (stainless steel, 40'C) |
Front |
mm |
0.9 |
Back |
0.8 |
Shear adhesion |
N/cm2 |
60 |
* Data are only references;
they are not guaranteed values.

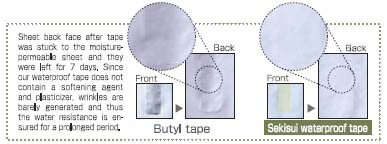

Durability of tape
Item |
Unit |
Initial durability |
After test (90'C, 50 days) |
Remarks |
Adhesion |
Aluminum |
N/25mm |
21.9 |
18.7 |
NYG S-0010 |

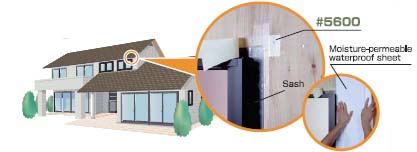

Moisture-permeable waterproof sheet |
N/25mm |
13.8 |
9.7 |
Strength of base material |
Tensile strength |
N/25mm |
168 |
151 |
Conforming to JIS Z1524 |
*Figures in this datasheet are only measurements. They are not guaranteed values.
