Housing Construction Double-faced Tape #532

Double-faced Tape 532
- for Use with a Bonding Agent

Our double-faced acrylic adhesive tape 532 has been developed to temporarily set fancy boards. The tape adheres to rough-surfaced or slightly-stained adherends very well. 532 temporarily holds the adherend until the adhesive used with it is completely dried.

Advantages

  • - The tape is superior in initial adhesion and offers excellent adhesion even in cold areas. It also adheres to rough-surfaced or slightly-stained adherends very well.
  • - The tape shortens the construction schedule thanks to low odor emission and good cutting by hand.
  • - The tape is free from the chemical substances regulated by THE MINISTRY OF HEALTH, LABOUR AND WELFARE's indoor air pollution guideline, such as formaldehyde, toluene, and xylene.

Applications

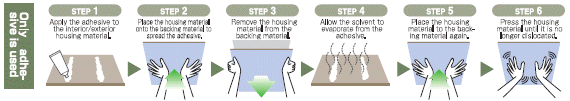

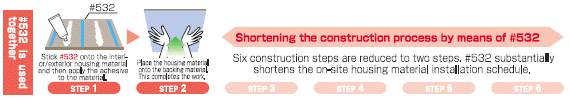

Only adhesive is used #532 is used together

Characteristics

Standard size

Thickness

Width Length Unit package No. of packages
1.1mm 20mm 10m 12 rolls (film package) 48 rolls

General physical properties

Item

Unit Measurement Remarks
Adhesion
(stainless steel)
N/25mm 32.8 JIS Z0237
(90-degree peeling)
Ball tack 1/32" over 32 JISZ0237
(J,DOW)
Holding performance
(stainless steel, 40'C)
mm 1.0 JISZ0237

* Data are only references; they are not guaranteed values.

Adhesion to calcium silicate plate (nonflammable fancy board)

Adherend

Unit Measuring time Shear
adhesion
Split
adhesion
Calcium
silicate plate
/gypsum board
N/cm

Immediately after the adhesion

30

18

20 minutes late

43

24

24 hours later

43

26

Adherend

Unit Measuring time Shear
adhesion
Split
adhesion
Calcium
silicate plate
/plywood
N/cm

Immediately after the adhesion

26

16

20 minutes late

25

17

24 hours later

38

22

* Data are only references; they are not guaranteed values.


References
Double-faced Adhesive Tape 530 with Position Adjustment Function
Double-faced Tape #532 - for Use with a Bonding Agent
Waterproof Double-faced Adhesive Tape 5600 / Waterproof Single-faced Adhesive Tape 7300
